Vacuum V1200E

More suction and ergonomics

V1200E is a vacuum for harvesting shell fruit with suction pipe diameter 75 mm.

The light material (leaves or small stones) vacuumed together with the fruit is ejected from the tank thanks to a patented separation system.


Available in models

V1200E

V1200EN

Compare the models
  • Maximum power
    3,6 kW (5 HP)
  • Diameter suction hose
    75 mm
  • Weight
    15,9 kg with pipes
Find a distributor Download the product brochure

Ideal For

Agriculture
Nuts
Olives

Features

Learn more about our products

Unique

Professionalism

Speed

Ergonomics

Technical specifications

Engine C7, 2STR
Displacement 77 cc
Maximum power 3,6 kW (5 HP)
Fuel tank 2 l
Usable harvesting tank 20 l
Diameter suction hose 75 mm
Weight 15,9 kg with pipes
Packaging 53 x 45 x 84 cm

Why choose Vacuum V1200E

Power and reliability for professional use

The machine is also suitable for intensive use, thanks to the powerful 5 HP two-stroke Cifarelli engine and professional carburettor.

The suction hose consists of a flexible part and a rigid pipe that ensure better suction of the product.

Each component has been carefully designed to guarantee the highest quality:

  • frame made of anodised aluminium, lightweight and corrosion-resistant;
  • ergonomics carefully designed for a machine that is comfortable to use;
  • curved backrest with wide and soft cushion, padded and adjustable shoulder straps;
  • control handle with adjustable position and inclination;
  • left handle for guiding the hose during harvesting;
  • lever for opening and closing the collection tank with the machine on your shoulder;
  • fuel tank with vertical nozzle to make refuelling easier;
  • lockable lever to keep the accelerator constant;
  • lifting handle;
  • silencer and fan designed for better acoustic comfort;
  • very low vibrations;
  • internal protection of the conveyor made of abrasion-resistant material, easily replaceable in case of wear;
  • standard connection of water pipes to clean the fan
  • super-efficient fan that ensures a high suction performance

Transport on wheels

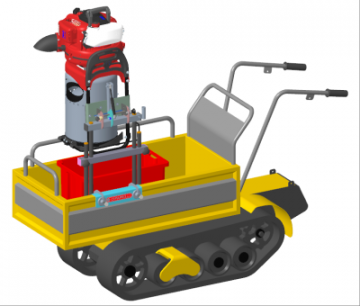

The V1200E vacuum can also be placed on a transport trolley (accessory on request) instead of on your shoulder, provided that you work in areas that are not particularly inaccessible.

In these cases, when using the vacuum on the trolley, you can apply a hose longer than the one provided, up to a maximum of 5 m.

Directions for use

The best way to use the V1200E vacuums is the following:

  • cover the areas below the plants, where the products will fall, with grass;
  • cut the grass before harvesting and clean the area with the BL1200 blower;
  • during harvesting, pile up the product with the blower to facilitate and speed up its collection with the vacuum;
  • when emptying the tank, keep the engine slightly revved up to improve the separation of the light material
  • The tank is very simple to empty and this can also be done while keeping the machine on your shoulder.
  • This procedure allows you to collect the fruit quickly and clean the product thoroughly.

Version V1200EN

Designed to collect larger fruit, the V1200EN has a 100mm diameter suction hose.

Version

Suction hose diameter

V1200E

75 mm

V1200EN

100 mm

Easy maintenance

As with all the professional machines designed and produced by Cifarelli, the V1200E is also designed to make maintenance easier in any condition.

A simple disassembly layout and the unified bolts facilitate and speed up the servicing operations; almost all the components can be dismantled by using a single spanner.

After-sales support

Our accurate after-sales service and the immediate availability of spare parts will allow you to operate with maximum efficiency in any situation.

The quality is guaranteed by a machine entirely designed and made in Italy with the best materials and a specialised workforce.

To guarantee you the best technical support, we chose to sell our products through the best distributors

Available in models

placeholder

V1200E

V1200E is a vacuum for harvesting shell fruit with suction pipe diameter 75 mm.

The light material (leaves or small stones) vacuumed together with the fruit is ejected from the tank thanks to a patented separation system.


placeholder

V1200EN

V1200EN  is a vacuum for harvesting shell fruit with suction pipe diameter 100 mm.

It’s suitable for picking larger fruits.

In this table you can see the differences between the models. The unspecified characteristics do not see any differences between the models and therefore those of the main product are considered.

Model V1200E V1200EN
Engine5HP C7, 2 strokes, 77 cc, 3,6 KW
Weight 13,9 kg 13,9 kg
Collection pipe diameter 75 100
