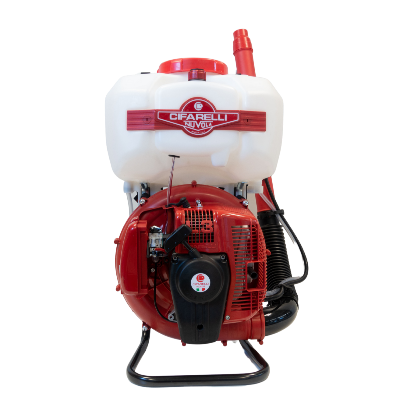

Mist blower L3Evo

Powerful, professional and easy to use

NB - not available in Europe except L3EvoEU

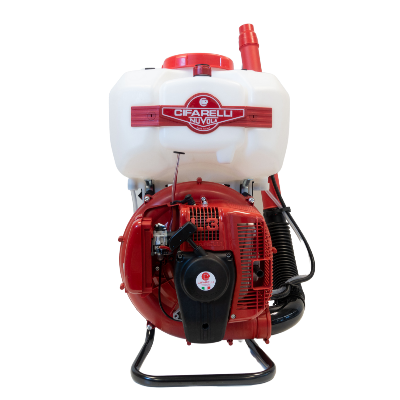

Cifarelli L3evo is the professional mist sprayer used by farmers all over the world for treating their crops.

Available in models

L3Evo

L3EvoEU

L3EvoW

Compare the models
  • Maximum horizontal range
    17 m
  • Maximum vertical range
    15 m
  • Average drops size
    Ø 120 µm
Find a distributor Download the product brochure

Ideal For

Agriculture
Gardening
Urban hygiene
Treatments

Features

Learn more about our products

Reliability

Ergonomics

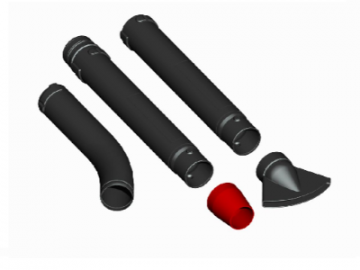

Wide range of accessories

Easy to use

Technical specifications

Engine C7, 2STR
Displacement 77 cc
Maximum power 3,6 kW (5 HP)
Air volume 20 m³ /min
Air speed 125 m/s
Liquids tank capacity 12 l (3,17 US Gal) or 18 (4,75)
Liquids outflow 0 - 3,6 l/min
Maximum horizontal range 17 m
Maximum vertical range 15 m
Average drops size Ø 120 µm
Fuel tank 1,9 l
Weight Without pipes 10,62 Kg, With pipes 11,36 Kg
Packaging 49 x 74 x 38 cm

Why choose Mist blower L3Evo

Cifarelli started out with the mist sprayer, a product for which we are famous all over the world. L3evo is a new evolution of the L3E, a machine dedicated to professionals that insures great autonomy, working capacity and comfort.

This new version offers several improvements compared to the L3E model:

  • Aluminium frame (lightweight and rust resistant)
  • New backrest (more comfortable)
  • Special shoulder straps with support (more ergonomic for long use, machine better supported)
  • New tank options available with a capacity of 12 liters for those who want a more compact machine or 18 liters for those who prefer the autonomy
  • Great configurability

Features

  • Long life and reliability: if you work every day in difficult areas, the reliability and durability of the machine are key elements of the selection. Thanks to the longer life, the total cost of the machine in the medium-long term is considerably lower than that of a machine that comes at a lower price, but that, if used daily, will have to be replaced very often.
  • Easy to use: L3evo is a machine for professionals, but at the same time it is very easy to use, as only the accelerator and tap need to be adjusted.
  • Easy to maintain: no frills, with open float chamber carburetor and unified bolts: the entire machine can be dismantled by using a single spanner.
  • Broad operating range: the powerful 5HP engine and the ventilation system ensure a very wide range: up to 17 meters horizontally and 15 meters vertically. The treatment is thus up to three times faster compared to low-power machines. Furthermore, the option of using it even with the pipe in a vertical position, combined with the considerable range, also enables you to treat tall trees.
  • High autonomy in its version with 18 liters liquid tank.
  • Comfortable thanks to the padded cushion and wide adjustable padded shoulder straps, both with a fabric finish.

Effectiveness of treatments

The mist sprayer allows for low-volume treatments. The uniform size of the dispensed drops, combined with the action of the air that moves the leaves, ensures effective and uniform protection on both sides of the treated surface.

Using the mist sprayer significantly reduces the use of water and chemicals. Indeed, compared to traditional shoulder-carried or motorised pumps, the treatment with the mist sprayer prevents waste due to dripping because the product is more concentrated and micronised.

Easy maintenance

For operators who work every day in the field, quick and easy maintenance is essential. This mist sprayer has an open float chamber carburetor for fast cleaning and a simplified disassembly scheme.

The single head of the bolts allows the entire machine to be dismantled by using a single spanner. All this makes it possible to intervene in an easy and timely manner even when working in difficult areas.

After-sales support

Our distributors offer an accurate after-sales service, with the immediate availability of spare parts, to prevent delays in the treatments carried out by professionals.

The quality is guaranteed by a machine entirely designed and manufactured made in Italy with the best materials and a specialized workforce.

Distribution

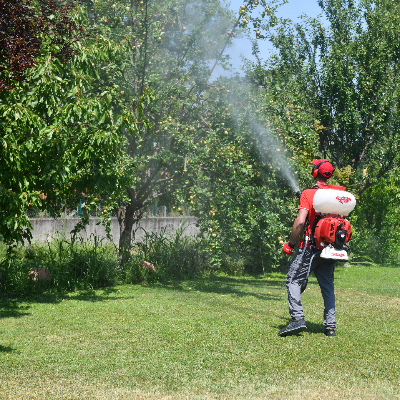

This mist sprayer model can only be sold outside EU and USA; for these areas we offer the M1200 mist sprayer, the most advanced professional machine of Cifarelli technological research.

Configurability

Depending on the markets the L3evo series atomizers are available with:

  • hook-and-loop or self-winding
  • tank carburetor or with diaphragm carburettor
  • gas lever on frame or handle
  • 12 or 18 litre tank

Available in models

placeholder

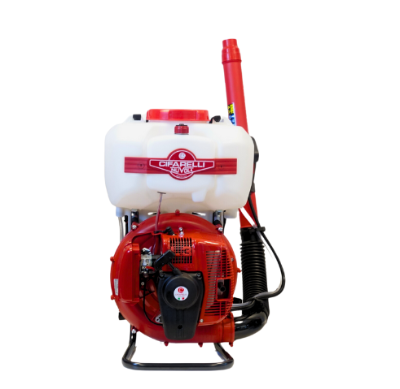

L3Evo

NB - not available in Europe except L3EvoEU

Cifarelli L3evo is the professional mist sprayer used by farmers all over the world for treating their crops.

placeholder

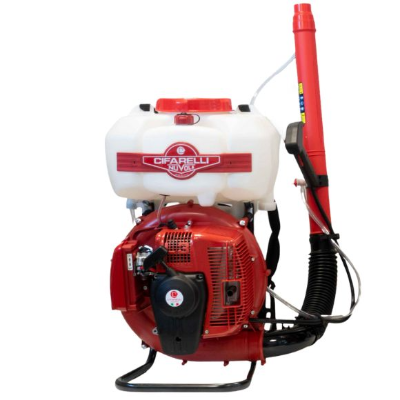

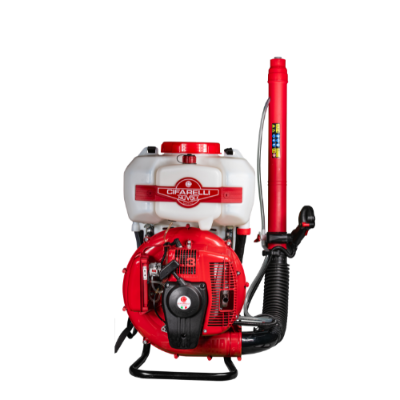

L3EvoEU

L3EvoEU is a compact machine thanks to the 12 l liquid tank that allows you to move easily on any terrain.

After the great success in countries outside Europe, the L3Evo mistblower is available in the CE version for all European countries.

placeholder

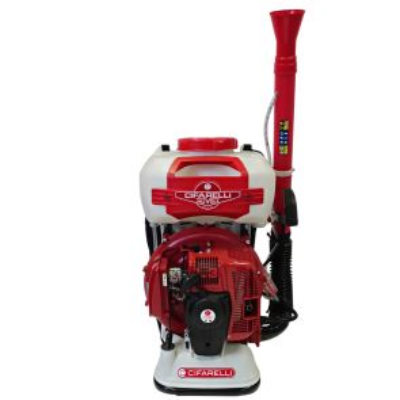

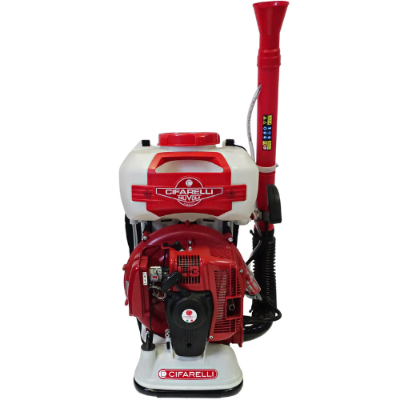

L3EvoW

The machine FULLY COMPLIANT with the requirements of the standard "Equipment for vector control specification guidelines, 2" edition. Geneva: World Health Organization; 2018" and can be provided to who requires the World Health Organization certificate.

In this table you can see the differences between the models. The unspecified characteristics do not see any differences between the models and therefore those of the main product are considered.

Model L3Evo L3EvoW L3EvoEU
Engine 5HP C7 / 2 strokes / 77 cc / 3,6 KW
Carburetor Walbro cubic / Walbro with primer Walbro cubic
Mixture tank 1,9 l 2,3 l 1,9 l
Liquid tank 18l / 12 l 12 l
Liquid flow 0 - 3,6 l/min
Controls on handle depending on models yes yes

Articles

26/10/2023

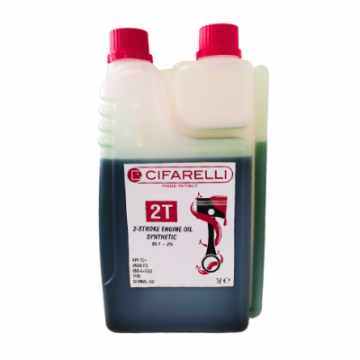

Oil Cifarelli 2T
